Value Region Marker

The Value Region Marker is a powerful tool that can be added on the Recorder Widget.

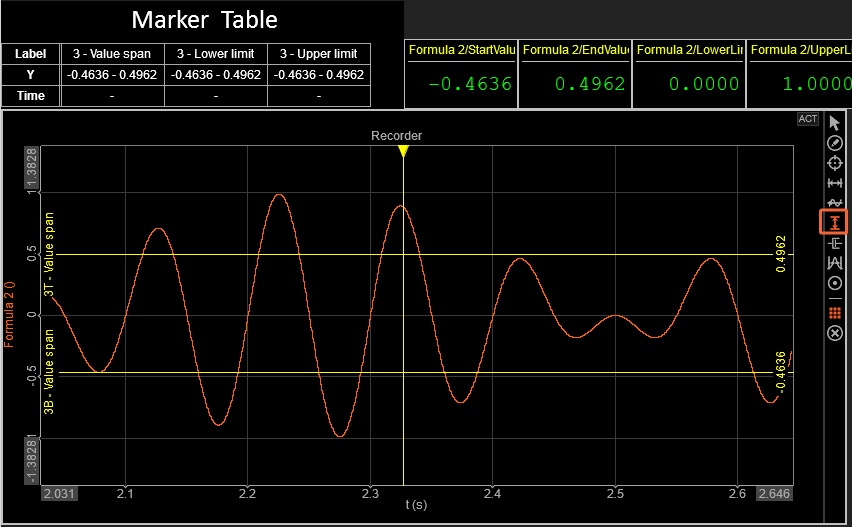

You can add a Value Region Marker by clicking the corresponding icon on the Marker Panel located on the right side of the widget. You can place as many markers as needed until you cancel the “Add” operation — simply do this by right-clicking your mouse.

Output Channels

The Value Region Marker outputs the following channels:

  • Delta (value)
  • Start Value
  • Stop Value
  • Upper Limit - Checks if upper limit is crossed. Only available in History mode.
  • Lower Limit - Checks if lower limit is crossed. Only available in History mode.

NOTE: Limit is checked based on the current position in data - position of yellow cursor.

You can view all Marker values in the Marker Table, which can be added from the Marker Panel. For a more compact and organized display, you can enable the Transpose Marker Table option.
