Cross Talk Compensation
The Cross talk compensation Math plugin allows you to configure mathematical decoupling for multi-axis force or torque transducers. By multiplying the raw input channels with a correlation matrix provided by the transducer manufacturer, the software calculates and outputs pure, isolated forces or torques by eliminating mechanical bleed-over between axes.

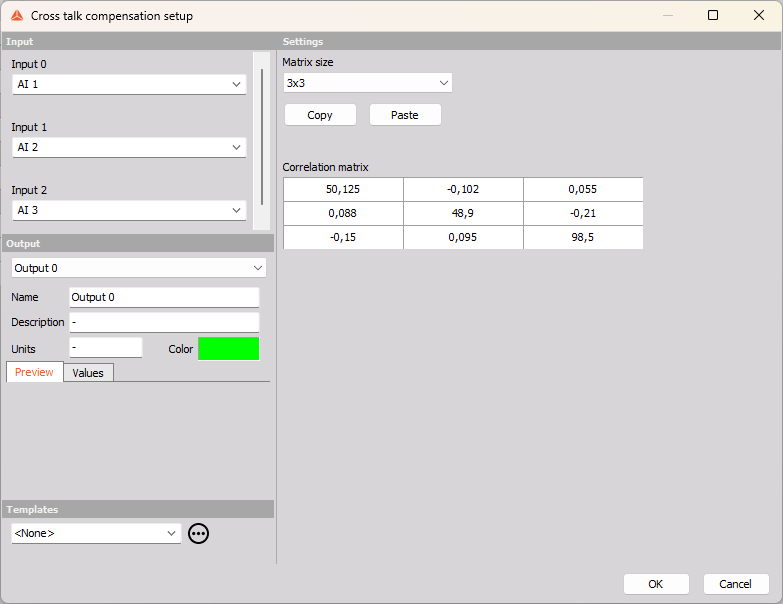

Depending on the chosen Matrix size, this plugin takes either 3 or 6 inputs (located on the top left) and generates a corresponding 3 or 6 outputs.
You can use the Copy and Paste buttons to transfer the 3x3 or 6x6 table to or from another spreadsheet program.
